Infrared Quartz Optical Fiber
Model:IR-AC Series
Product Overview
Infrared quartz fiber is crafted from low-hydroxyl quartz via a specialized process, delivering exceptional transmission performance across the visible to near-infrared (VIS-NIR) spectrum.
Application Areas
- Laser Transmission
- Spectral Analysis
- Laser Cutting
- Medical Diagnosis
- Laser Welding
- Light guide illumination
Product Specifications
| Parameter Name | IR50/125- 22/245-AC | IR105/125- 22/245-AC | IR200/220- 22/320-AC | IR400/440- 22/700-AC | IR600/660- 22/960-AC | IR800/880- 22/1100-AC | IR1000/1100- 22/1600-AC |
|---|---|---|---|---|---|---|---|
| Core Diameter (μm) | 50±2 | 105±2 | 200±4 | 400±8 | 600±12 | 800±16 | 1000±20 |
| Cladding Diameter (μm) | 125+1/-3 | 125+1/-3 | 220±4.4 | 440±8.8 | 660±13.2 | 880±17.6 | 1100±22 |
| Coating Diameter (μm) | 243±12 | 243±12 | 310±15.5 | 680±34 | 940±47 | 1080±54 | 1560±78 |
| Numerical Aperture (NA) | 0.22±0.02 | ||||||
| Operating Wavelength (nm) | 400-2400 | ||||||
| Operating Temperature (°C) | -45～+85 | ||||||
| Hydroxyl Content | Low Hydroxyl | ||||||
| Refractive Index Structure | step | ||||||
| core material | Pure Quartz | ||||||
| cladding material | F-doped quartz | ||||||
| Tight buffer material | Acrylic Resin | ||||||
Product Drawings
Fiber Attenuation Curve

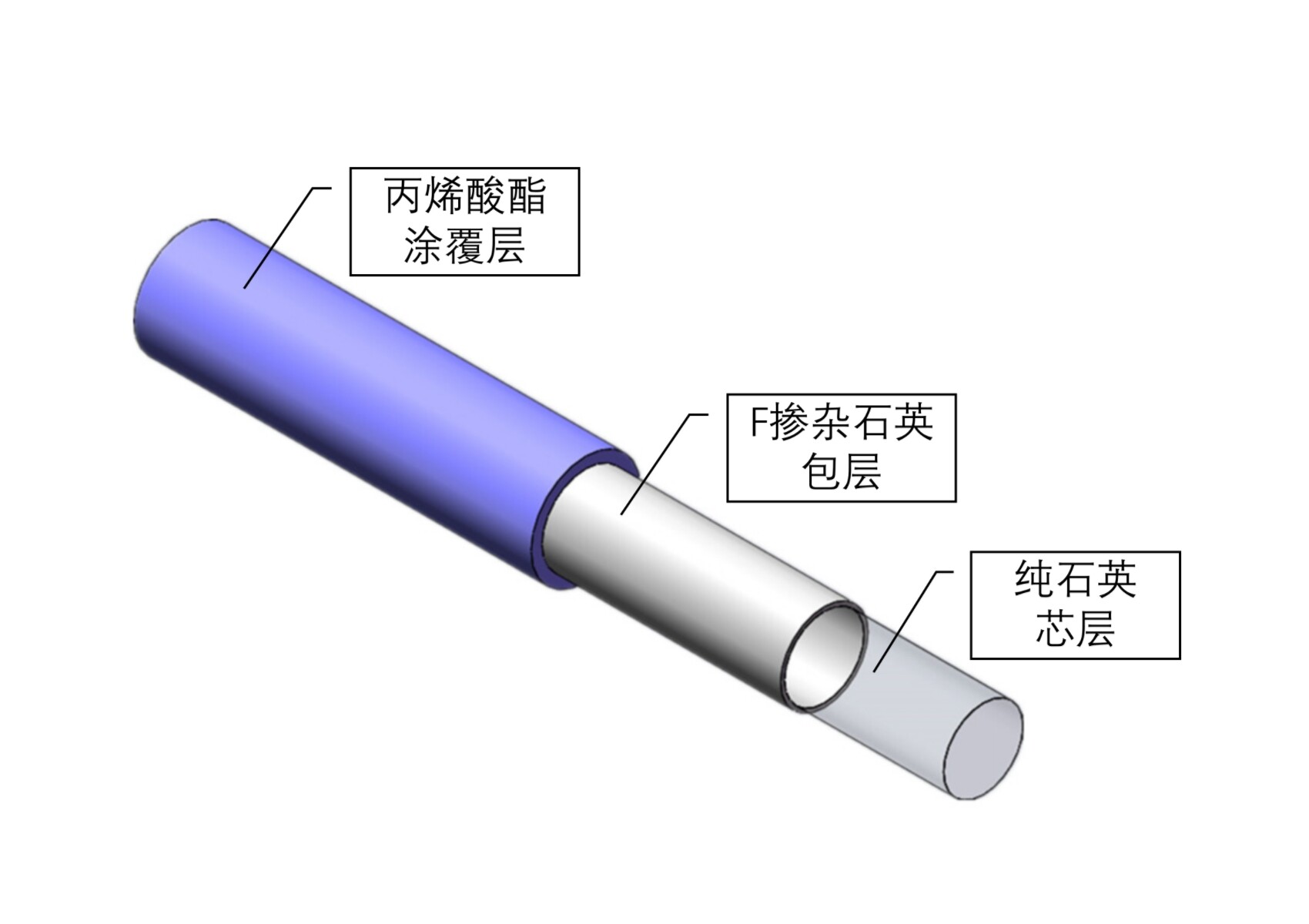

Fiber Optic Structure Diagram
