HPSMA905 Split Connector
Model:F-HPSMA905-S
Product Overview
The HPSMA905 fiber optic adapter is designed and manufactured per GB/T12507.2-1997. It is a non-contact connector suitable for high-power optical signal and laser energy transmission. The ferrule end face features grooves that create an air gap to remove energy-absorbing material near the fiber tip, preventing laser back-heating at the connector interface. Constructed from stainless steel, the ferrule acts as a heat sink, rapidly dissipating heat away from the fiber core to minimize the risk of fiber damage.
Product Specifications
| Parameter Name | F-HPSMA905-S | |
|---|---|---|
| Core material | Stainless Steel | |
| Inner Diameter | 125-149μmwhen, tolerance+0～+3 μmconcentricity≤10 μm | |
| 150-449μmwhen, tolerance+0～+5 μmconcentricity≤10 μm | ||
| 450-1499μmwhen, tolerance+0～+10 μmconcentricity≤15 μm | ||
| 1500-2300μmwhen, tolerance+0～+20 μmconcentricity≤15 μm | ||
| Cylinder diameter | 3.170mm, tolerance-0.004～+0 mm | |
| Insert length | 9.85mm, tolerance+0 to +0.05mm | |
| Pair with loose parts | hex nut | |
| 3.0 Metal Tailpipe / 6.0 Metal Tailpipe / 8.0 Metal Tailpipe | ||
| Transparent Dust Cap / Metal Dust Cap | ||

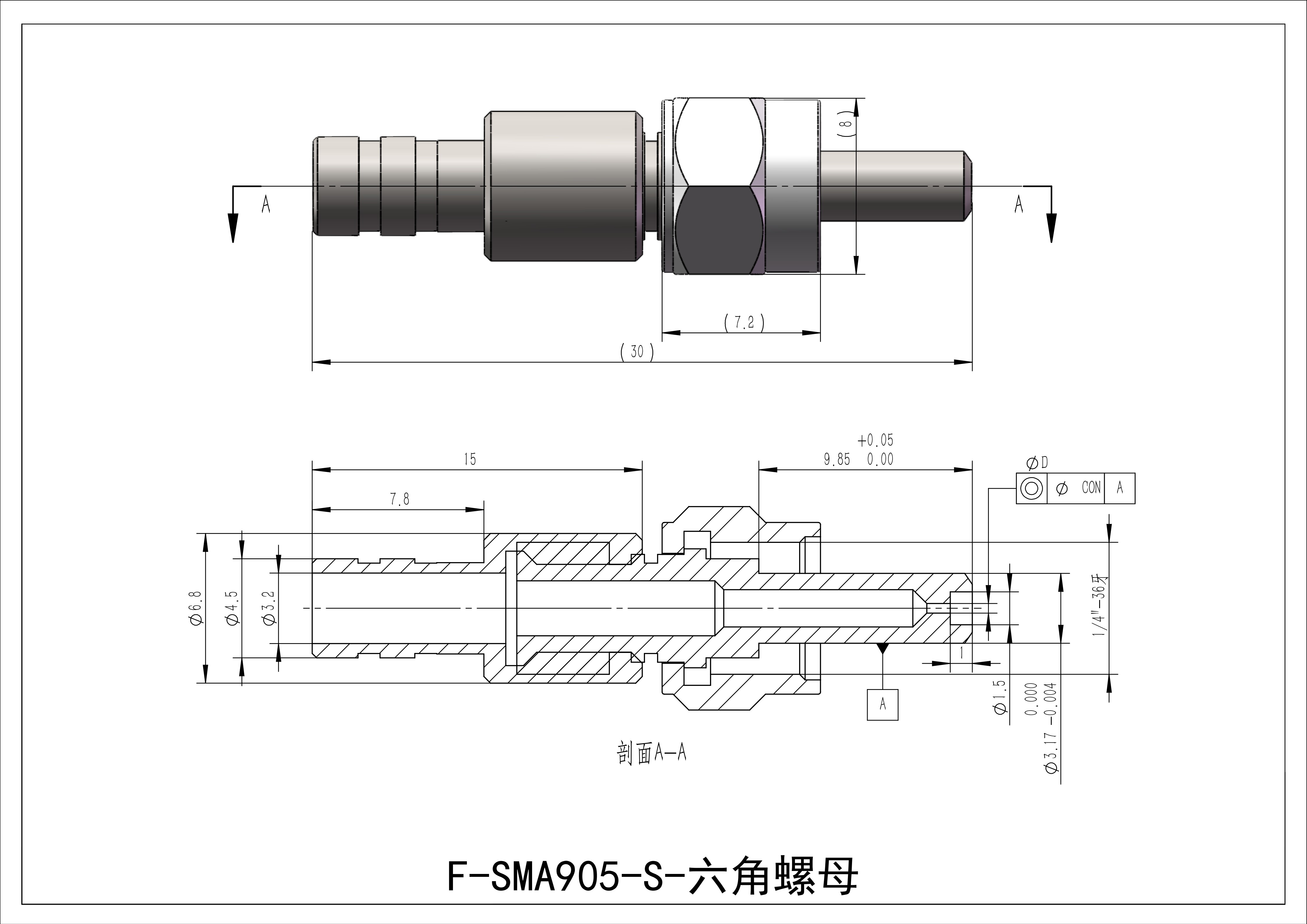

Product Drawings
