High-temperature-resistant UV quartz optical fiber
Model:UV-PI Series
Product Overview
The high-temperature-resistant UV fiber features a polyimide coating, combining the excellent transmission performance of UV-grade silica fiber across the ultraviolet to visible (UV-VIS) spectrum with the thermal stability of the high-temperature coating. It is ideal for UV transmission and UV spectroscopy in high-temperature environments.
Application Areas
- UV lithography
- Aerospace & Defense
- UV curing
- Nuclear Energy Industry
- Spectral Detection
- Research Testing
Product Specifications
| Parameter Name | UV00/110- 22/140-PI | UV05/125- 22/155-PI | UV00/220- 22/250-PI | UV300/330- 22/370-PI | UV400/440- 22/480-PI | UV600/660- 22/700 PI |
|---|---|---|---|---|---|---|
| Core Diameter (μm) | 100±2 | 105.0±3.0 | 200.0±4.0 | 300.0±3 | 400.0±10.0 | 600.0±10.0 |
| Cladding Diameter (μm) | 110±3 | 125.0±3.0 | 220.0±4.0 | 330.0±5 | 440.0±9.0 | 660.0±10.0 |
| Coating Diameter (μm) | 140±5 | 155.0±5.0 | 250.0±5.0 | 370±10 | 470.0±10.0 | 690.0±15.0 |
| Numerical Aperture (NA) | 0.22±0.02 | |||||
| Operating Wavelength (nm) | 200-1200 | |||||
| Operating Temperature (°C) | Long-term: 195 to +300, Short-term: 350 | |||||
| Hydroxyl Content | high hydroxyl | |||||
| Refractive Index Structure | step | |||||
| core material | Pure Quartz | |||||
| cladding material | F-doped quartz | |||||
| Tight buffer material | Polyimide | |||||
Product Drawings

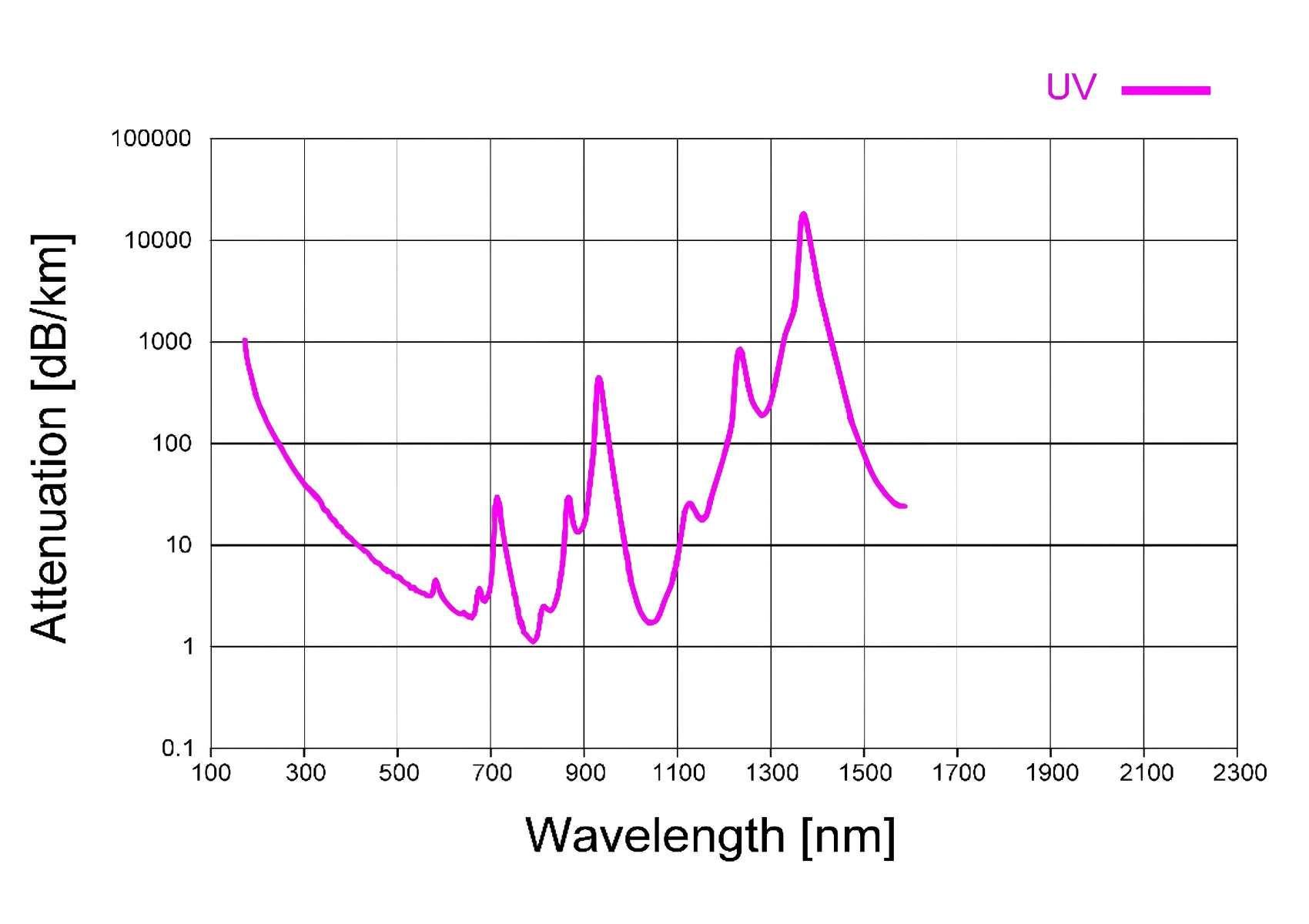

Fiber Attenuation Curve

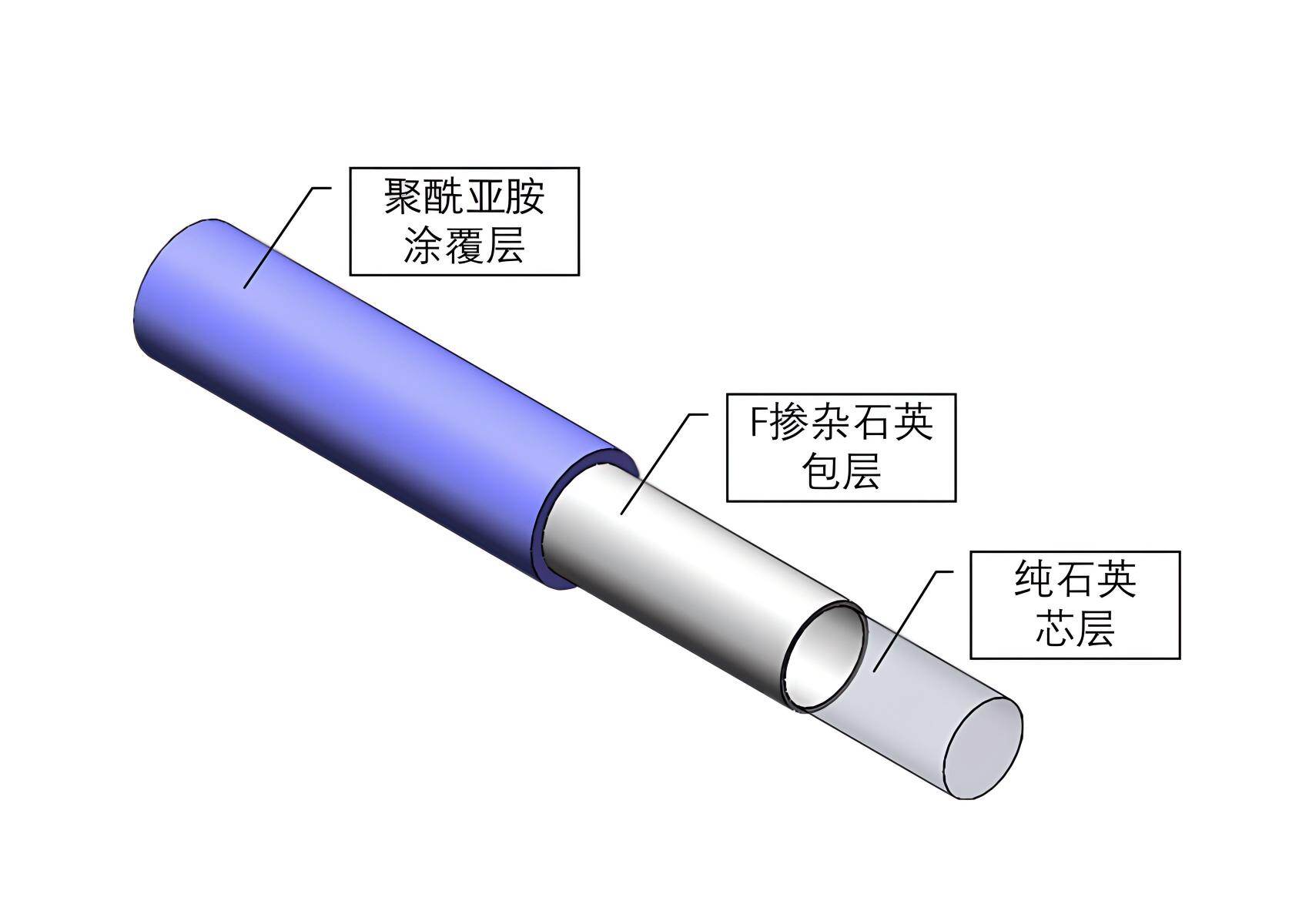

Fiber Optic Structure Diagram
